Therm-ic PowerSock S-Pack 1400 Bluetooth – 2 Pack

The S-Pack 1400 Bluetooth battery is the most efficient in the range. With Bluetooth technology, you can adjust the heat settings remotely using your smartphone.

Features:

• Bluetooth function
• Warm feet for up to 16 hours
• Pack comes with a USB charger
• Wall charger not supplied S-Pack batteries are suitable for use with the Therm-ic PowerSocks heated socks

FIRST USE AND CHARGING OF THE S-PACK
BATTERY:

Important note:

• The S-Pack battery must be charged before using
  them for the first time.
• Preparing the USB wall plug universal charger (optional).
• Slide your country-specific adapter into the slot
  on the back of the charger until it locks in with an
  audible click.

USB cable charging process:

1. Plug the USB cable into the USB port. The charge
indicator (2.2) will light up green. Next, you plug the
charging connectors of the cable into the batteries
S-pack (2.4). Please check the illustration on the charger
to ensure proper orientation. The S-Pack battery
can be charged in any operating mode. The charging
process will start automatically and the charge indicator
(2.2) will light up in red during charging.

2. Once the S-Pack batteries are fully charged, the
charging process is automatically concluded and the LED on the charge indicator (2.2) will switch
back to green.

3. LED blinking on USB S-Pack charger between
green and red when charge above 95%. LED stays
green when fully charged.

4. Remove both S-Pack batteries from the charging
shaft.

5. After the S-Pack batteries have been charged, they
are automatically in POWER OFF mode.

Important note:

� Recharge the S-Pack battery after each use. This
extends the service life of the batteries and ensures
that the device is always ready for use.

� The battery consists of lithium ion cells and can be

charged in any state. For this reason, the battery
does not need to be fully discharged before
charging.

� When starting the charging process, the S-Pack
battery can be in any operating mode (POWER
OFF, IN USE)

� The full charging capacity of the S-Pack battery can
only be conserved if the S-Pack battery are removed
from the charging station after the charging
procedure is complete.

HOW TO USE THE POWERSOCK BATTERY
� Wear the heatable sock.
� Push the S-Pack battery on to the snap fasteners
until they audibly lock into place (3.2).
� The S-Pack battery can be controlled with button
(1.3) or with a iOS and Android app (only for S-Pack
Bluetooth� enabled).

IMPORTANT INSTRUCTIONS FOR USE:
� Do not allow the highest heat level to be switched
on for more than a few minutes at a time. This could
produce too much heat during operation, which
may cause burns.
� Always set S-Pack battery to low or moderate heat
levels to maintain comfortable foot warming (heating
should be almost undetectable).
� The optimum heat output is only reached when the
socks, boots or soles are dry.
� Never used the heatable sock and the heatable
insole together; this can result in too much heat –
risk of burning!

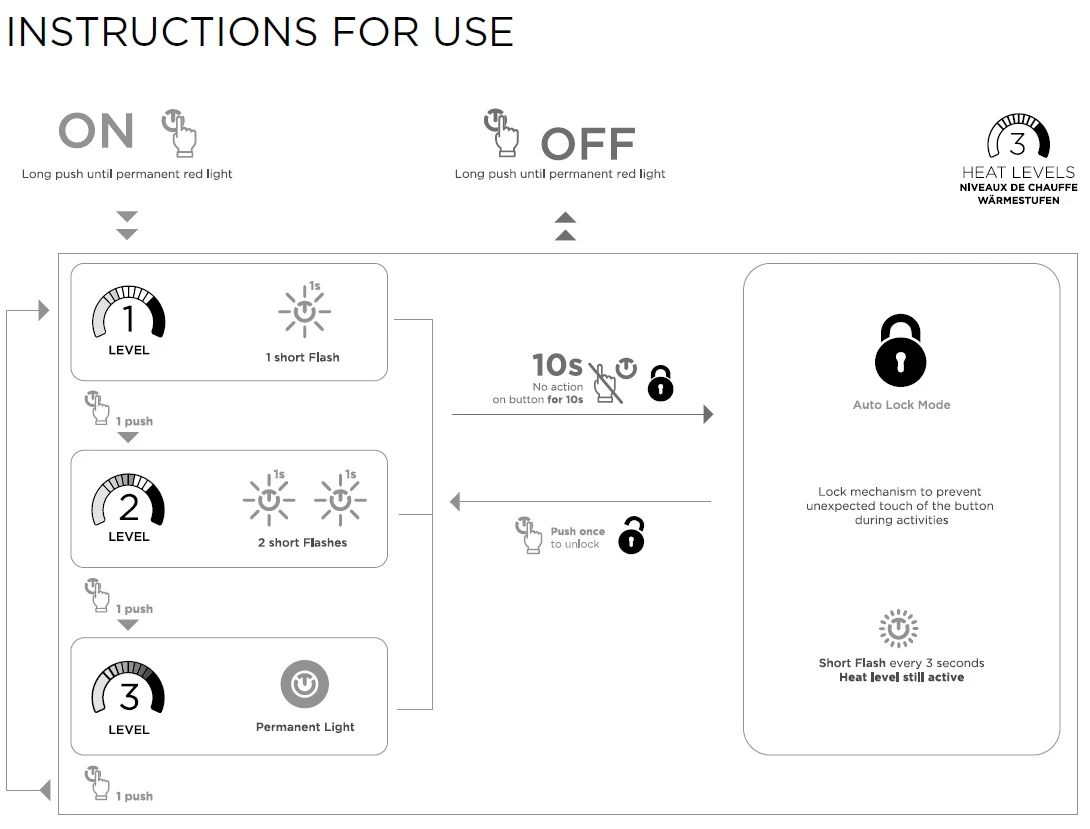

Information about Therm-IC S-Pack Battery Styles:

S-Pack without bluetooth�
The S-Pack battery has 4 operating modes: POWER
OFF � IN USE LEVELS . They are indicated with
the heating level display on the S-Pack battery. The
LED flashing modes corresponds to the selected heat
setting.

S-Pack with bluetooth�
Using the phone App: Please refer to the Bluetooth�
app or www.therm-ic.com.

Turning the device on:
Press the control button (1.3) for a long period of time
(approx. 3 sec) to turn on the S-Pack battery at the
lowest heat level. If the control button is pressed for too
long (approx. more than 6s), the S-Pack will remain in
OFF mode.
